Processes which can be automated by electric actuators, are very
wide, from moving production machinery parts or processed
product on the conveyor belt to positioning of transport
equipment parts, medical equipment etc.
Fast motion
Accurate positioning
Long lifetime
Simple setup
Reliability
Compact design

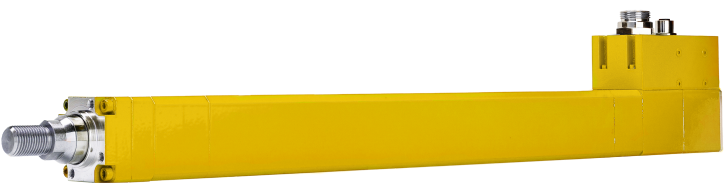

Smart actuators for automation application with embedded servo drive on board
Max force: 500 N
Max speed: 500 mm/s at 5 mm/rev pitch
Frame size: 45x45 mm
For correct fulfillment of motion operations high positioning accuracy is crucial.
DA45 design allows to achieve the accuracy of the rod motion up to 0.1 mm positioning accuracy.
positioning accuracy
In order to provide reliable and non-stop operation of customer’s machinery, DA45 was designed
and tested to have substantial safety margin, which allows 14500 km of motion at 300 N load
at 300N load
Depending on the requirements of customers application, various max loads and speed may be chosen from
the options of DA45. Max speed in the current configuration at 5 mm/rev screw pitch is 500 mm/s
max speed
For the convenience of set up Diakont DA45 electric servo actuator is equipped with a very compact servo drive, which is built-in in the actuator housing. It has Ethernet IP communication protocol.
DA45 has very compact dimensions even with a built-in servo drive and an optional brake. It makes it’s very easy to integrate into all kinds of industrial machinery, conveyor belts, transport and any other designs.

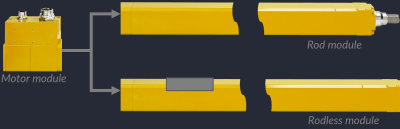

One of the key advantages of DA45 product line is the modular design. The idea is simple: The motor, feedback sensor, built-in servo drive and optional brake are all placed in the same module, which is called “motor module”. The motor module can be connected to any type of the moving rod module or rodless actuation module depending on every application specific requirements.
