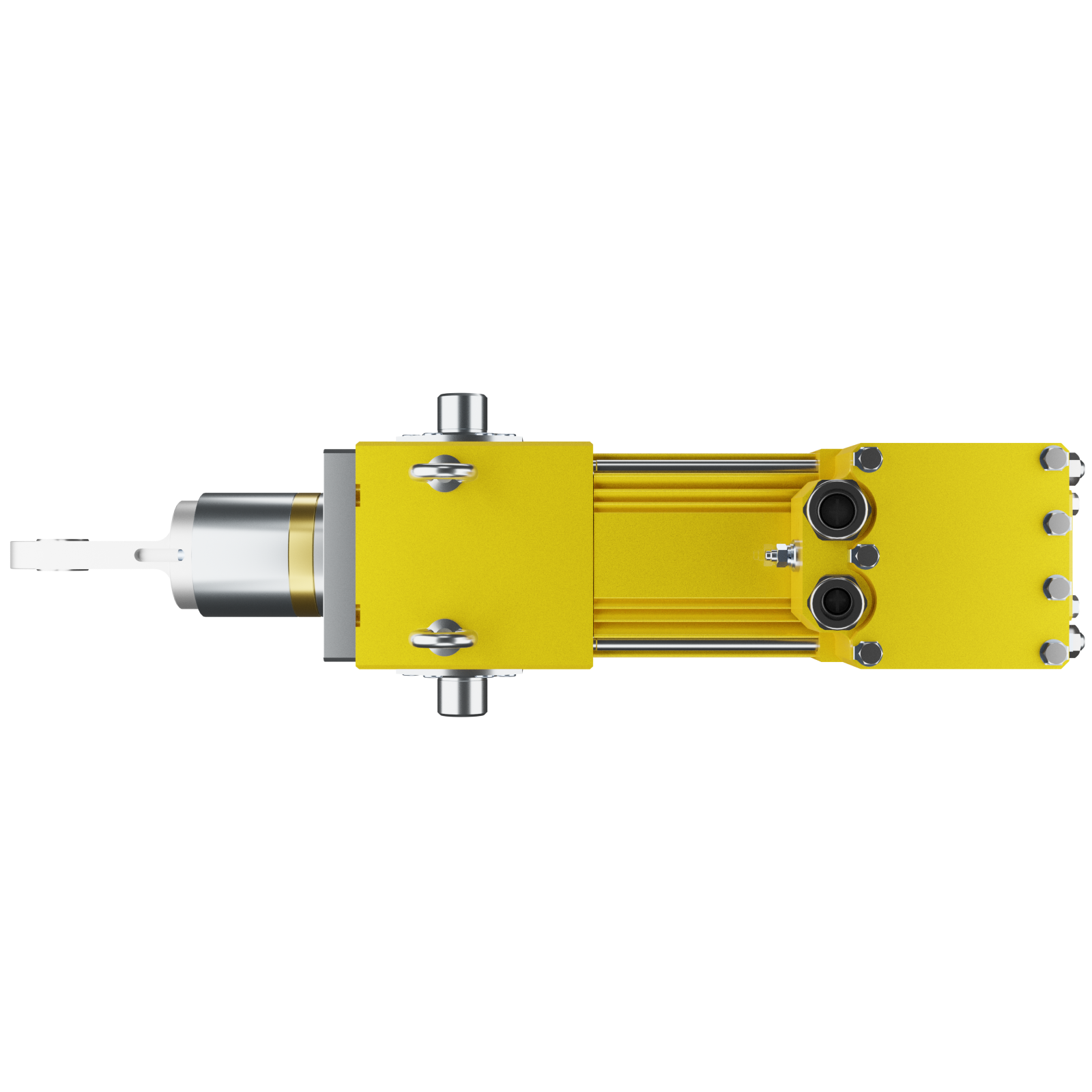

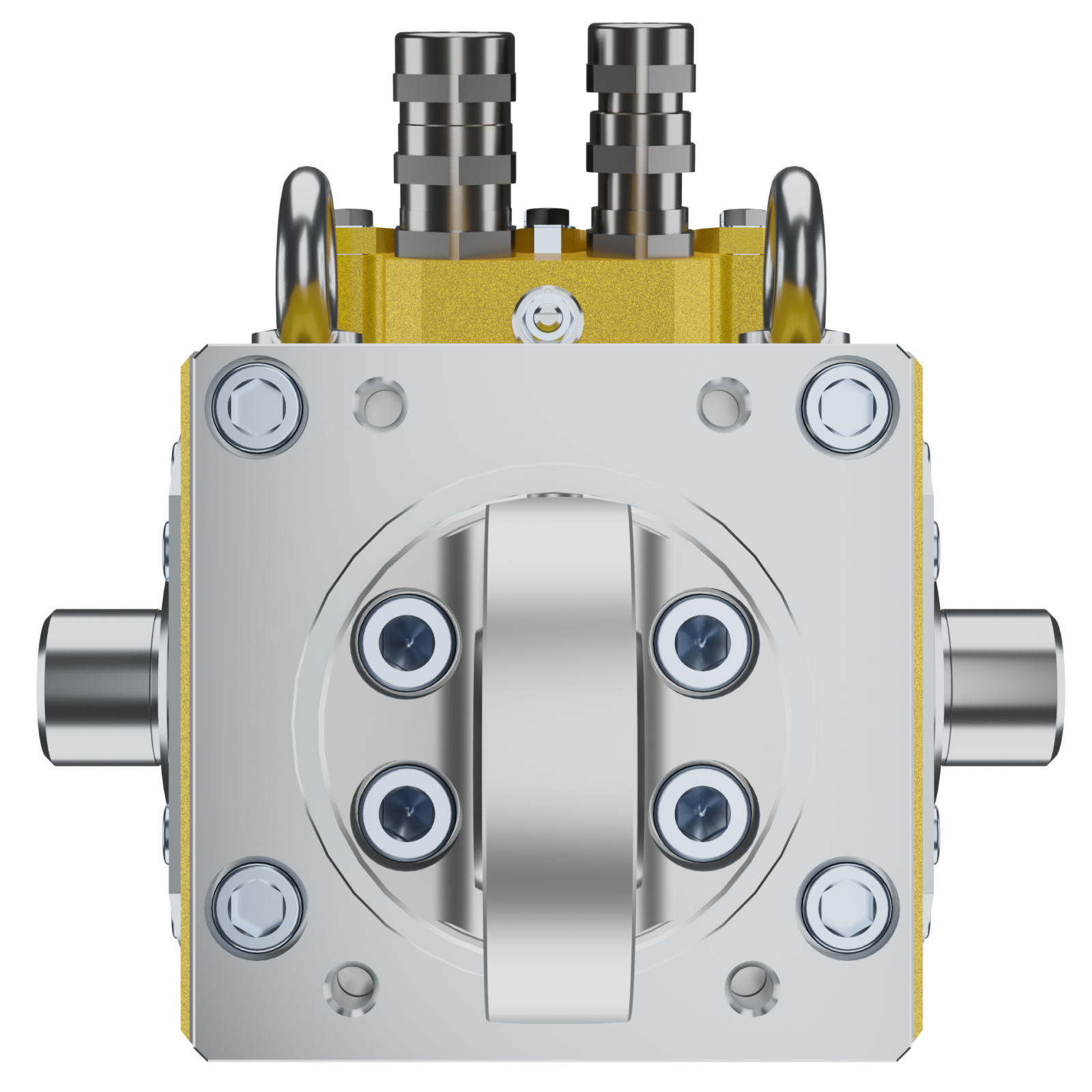

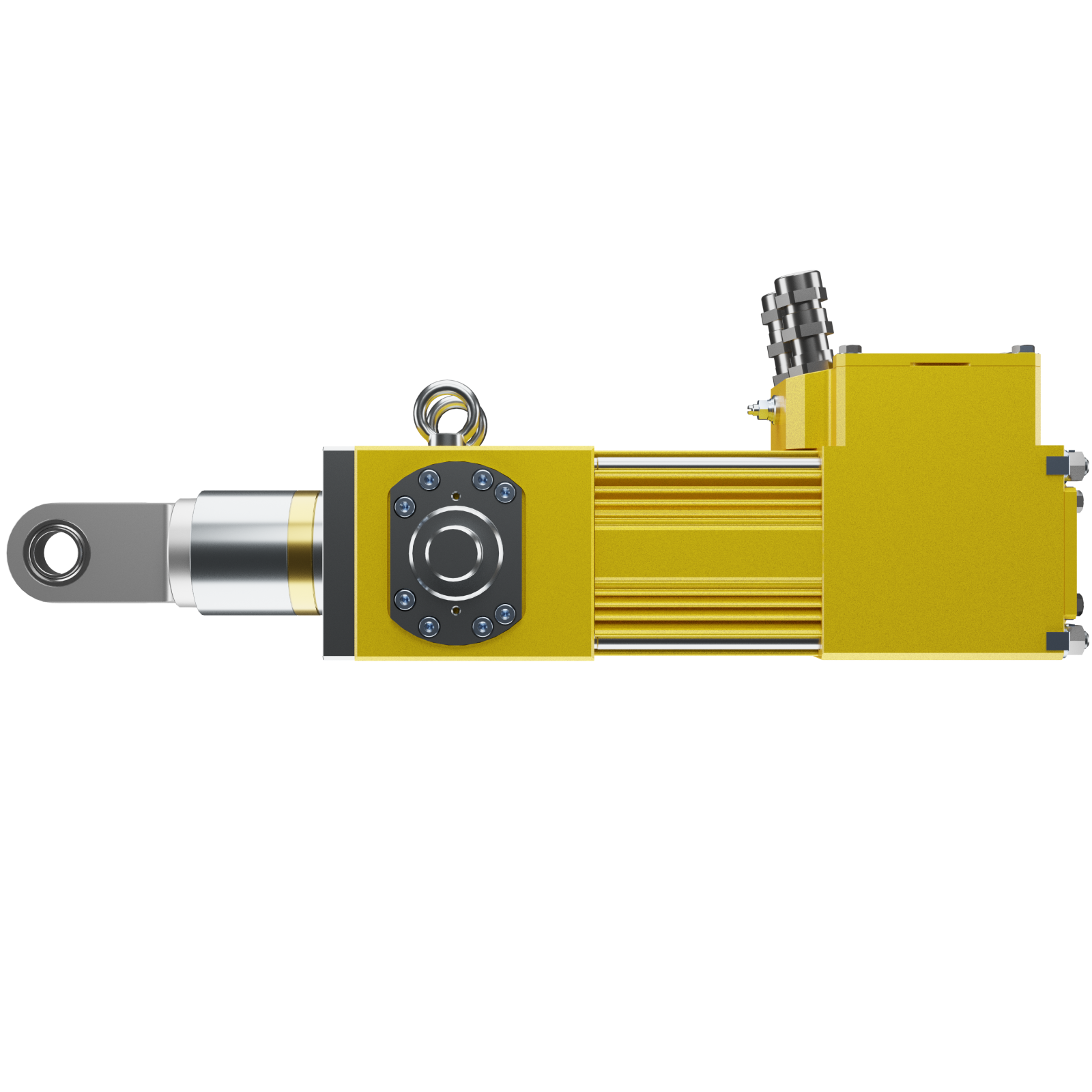

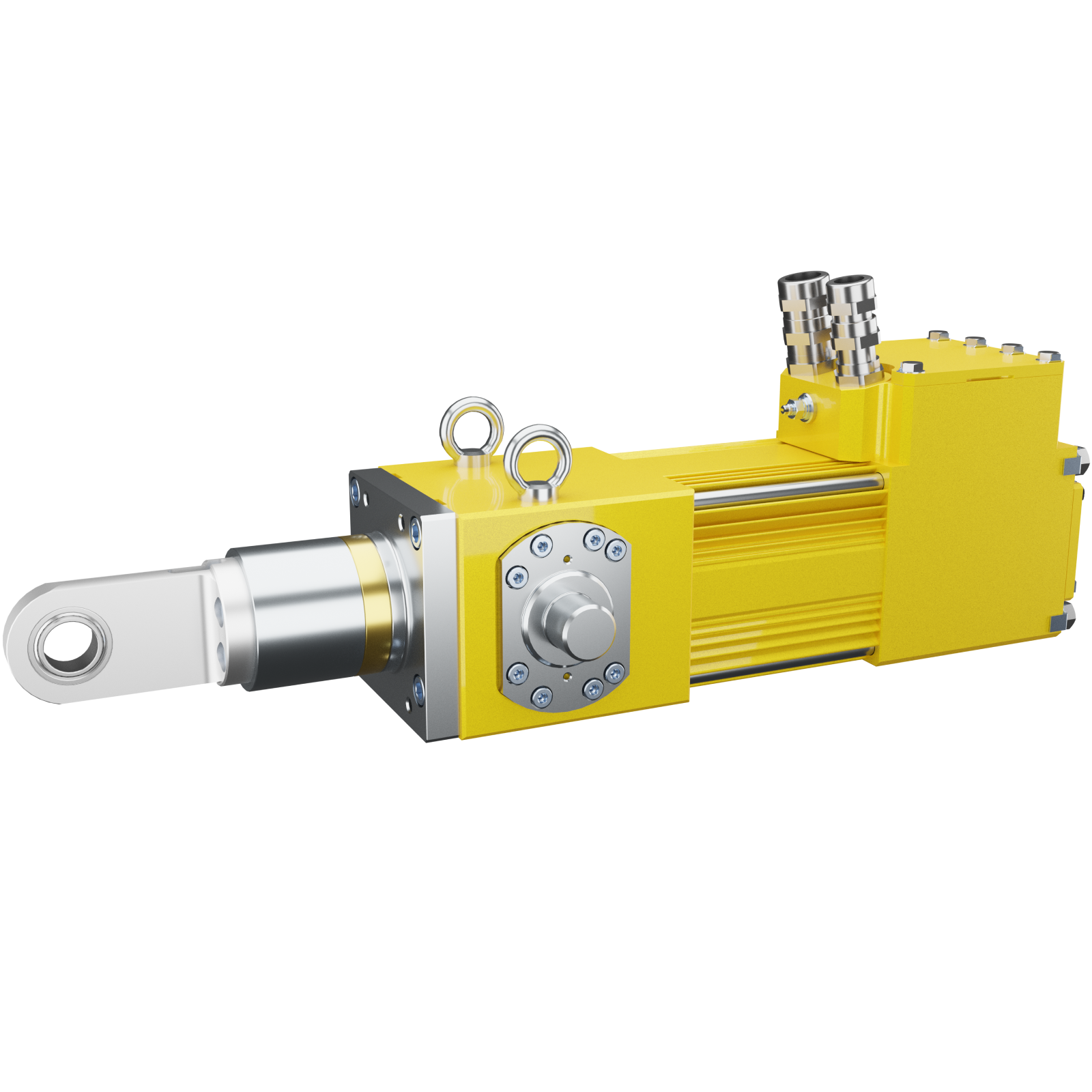

DA 140 Ex
for operation in hazardous location
DA140 explosion-proof roller-screw actuators provide high force and are capable for operation in a variety of applications on turbines located in hazardous environment. It is applicable for gas turbines and steam turbines that operate in oil & gas, petrochemical and other industries where turbines are located in hazardous area.
Turbine actuators in hazardous area work under heat and vibration impacts. DA140 actuator was designed to ensure reliable operation in such a harsh environment. Diakont have supplied actuators capable to operate under vibration load up to 10 g (from 10 to 500 Hz) and higher.
Turbine actuators in hazardous area work under heat and vibration impacts. DA140 actuator was designed to ensure reliable operation in such a harsh environment. Diakont have supplied actuators capable to operate under vibration load up to 10 g (from 10 to 500 Hz) and higher.
Parametr | Value |
---|---|
Rated force | 36 000 N |
Peak force (for 1 second) | 60 000 N |
Dynamic load rating | 114 000 N |
Rated speed | 100 mm/sec |
Stroke | 198 mm |
Mounting type | Trunnions (options available) |
Supply voltage | 400 VAC |
Rated power | 2.8 KW |
Feedback sensor | Resolver |
Backlash | 0.15 mm |
Kinematic accuracy of linear displacement | 0.025 mm |
Ambient temperature | -40°С…+120°С |
Humidity | Up to 100% |
Ingress protection | IP65 |
Weight | 55 kg (with front flange mounting) |
Hazardous location class | Ex db IIC T3 (-40°C < Tamb < +120°C) Gb Ex db IIC T4 (-40°C < Tamb < +60°C) Gb Ex h IIC T3/T4 |
• Long lifetime
• High positioning accuracy
• Minimum maintenance
• Wide customization possibilities
• Robustness to external factors
