DA 108

Expands the capabilities of hot runner systems

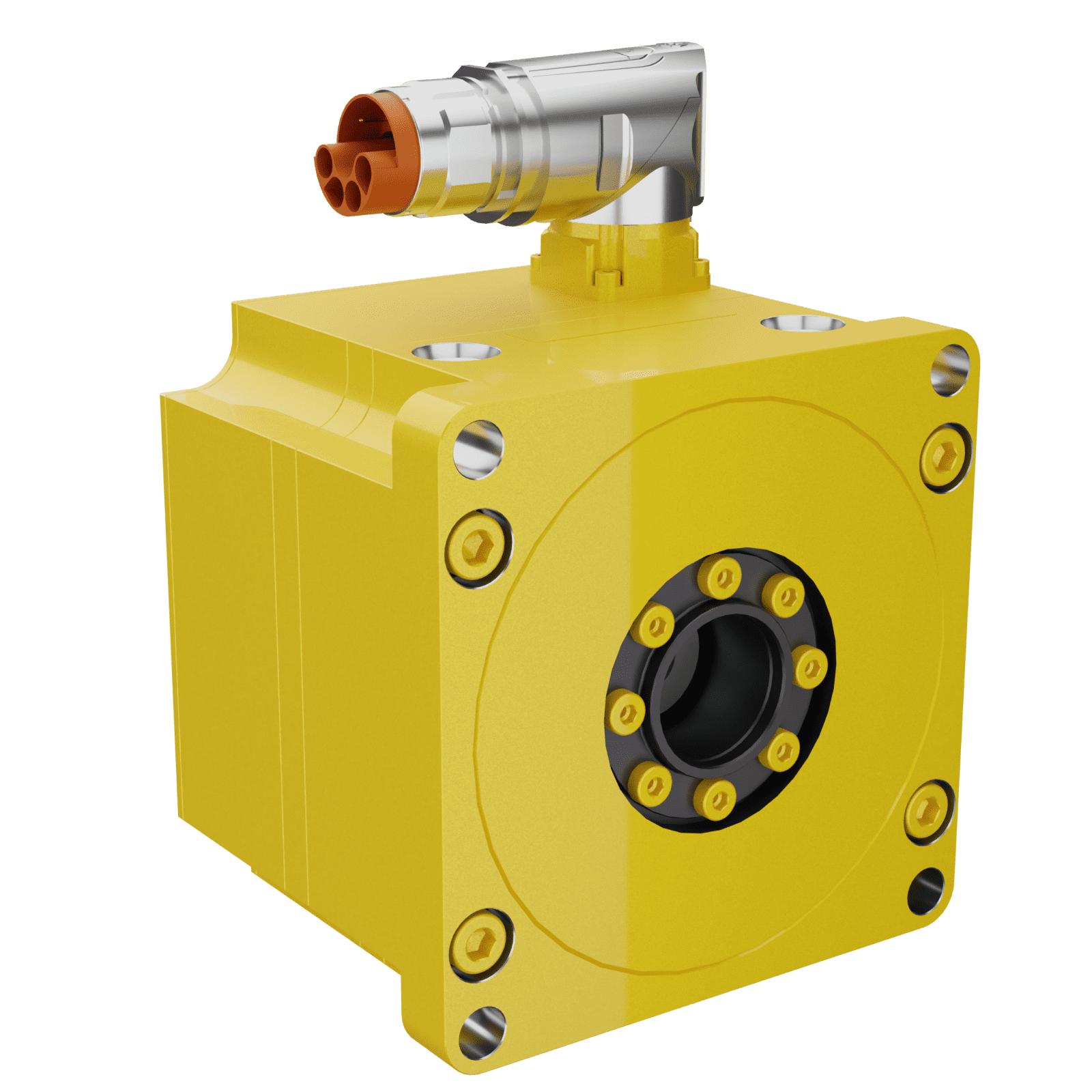

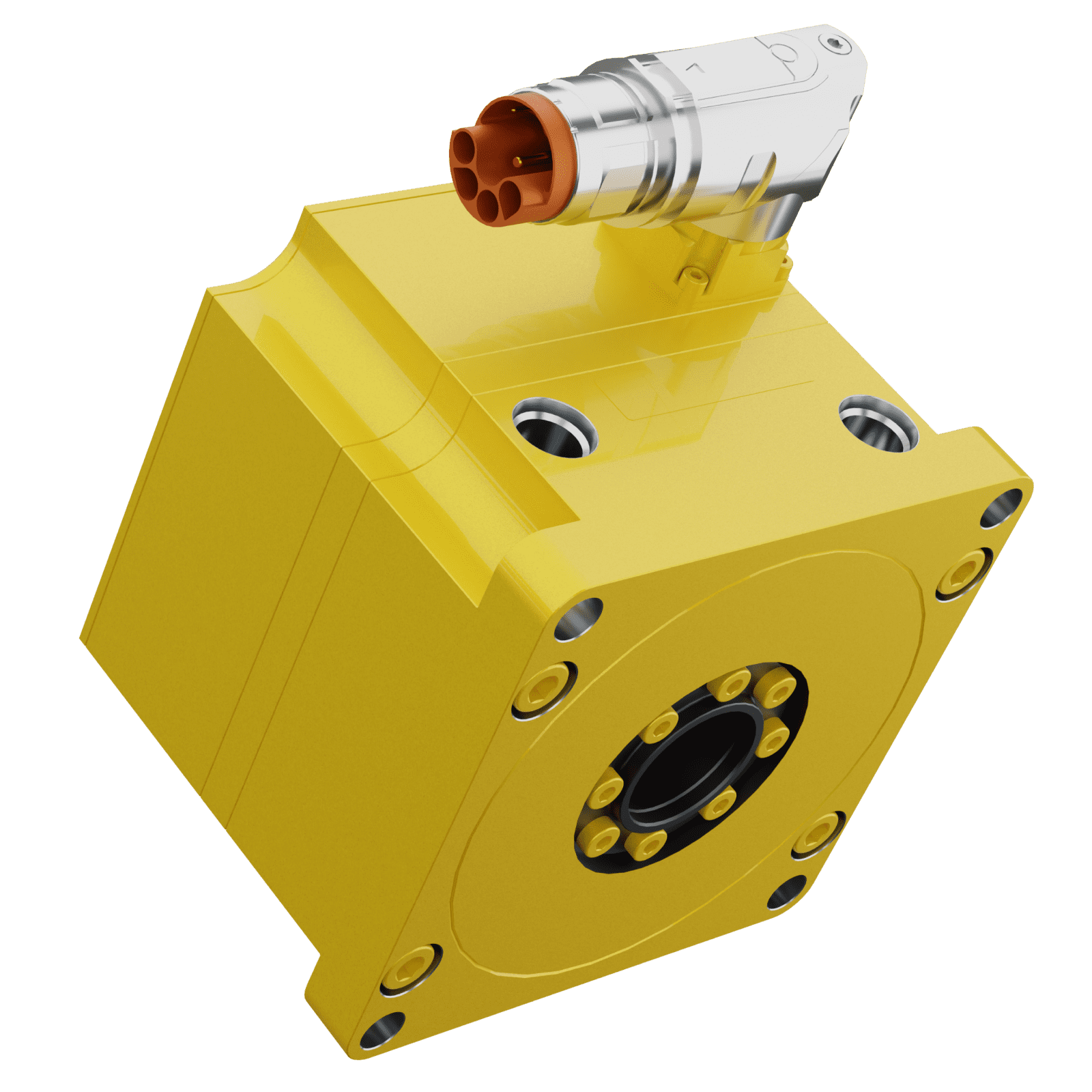

DA108 is a compact electric actuator for gate valves of hot runner systems. The actuator is designed for medium or large gates with a pin up to 10 mm. High force, speed and precision in a compact design with a hollow rod of DA108 allows to create highly competitive electric hot runners for sequential gating, family mold and multicomponent co-injection.

Order

Technical specifications Options

Parametr	Value
Peak force	5000 N
Max. speed	80 mm/s
Stroke	18 mm
Repeatability	0.01 mm
Base dimensions	108x108x90.5
Base weight	12.2 kg
Protection level	IP54
Ambience temperature range	up to 360°C
Service life	1+ million cycles
Maintenance	Lifetime lubrication
Cooling	built-in water cooling
Feedback sensor	absolute encoder
Voltage	230 V

Built-in water cooling

Built-in water cooling allows safe performance of the actuator installed in extremely hot areas, where temperatures of the manifold reach up to 360°C due to the melted plastic.

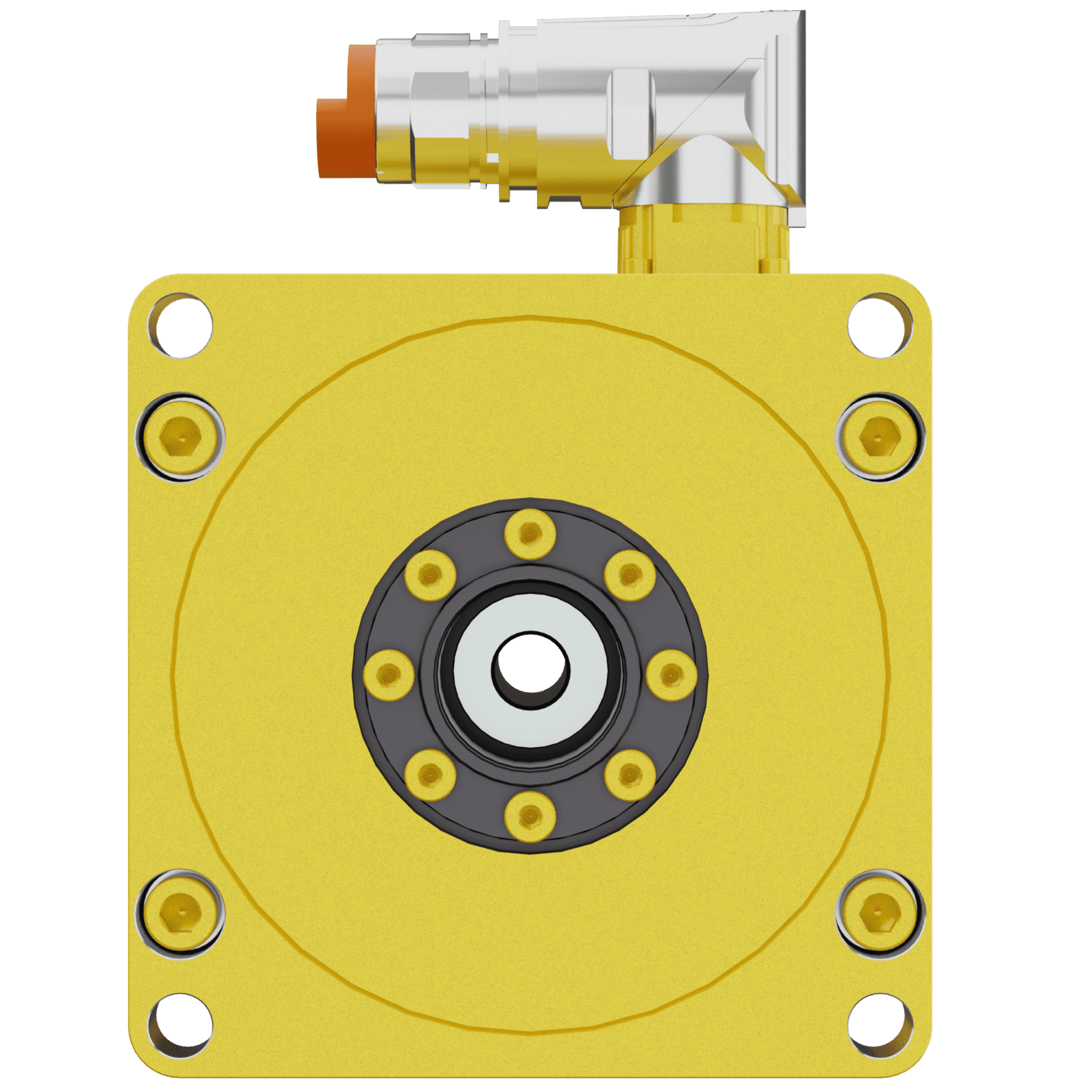

Hollow shaft for easy pin replacement

This option allows for pin replacement through the hollow shaft without actuator dismounting, which makes the process as easy as in alternative hydraulic solutions.

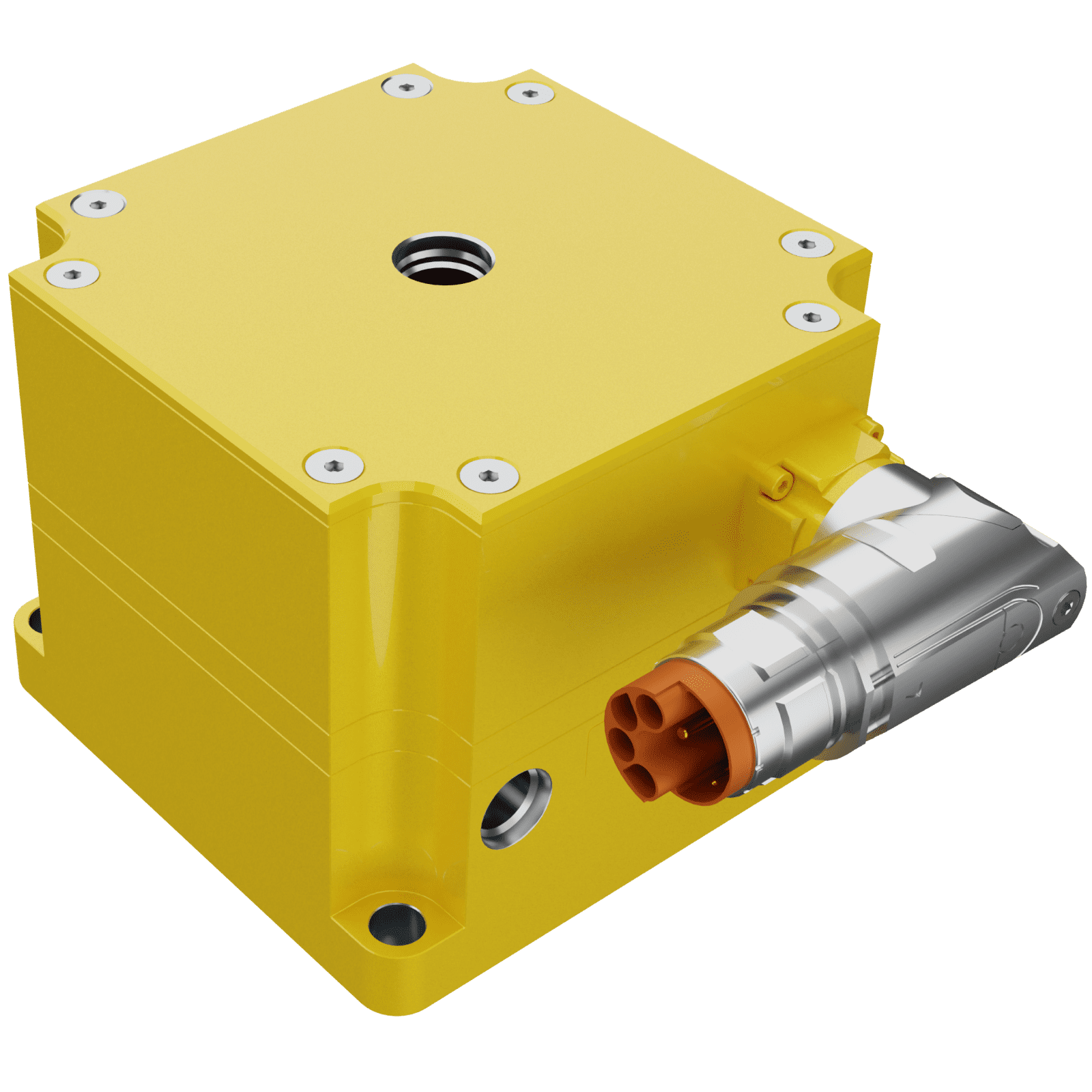

Single connector cable

Optional single interference-resistant cable connection simplifies mounting of DA108 actuators saving space in the manifold and costs for the mounting.

Customized solutions

Do you have questions about our solutions or need personal advice? Take advantage of our many years of experience, the high technical competence of our team and our wide range of services.
